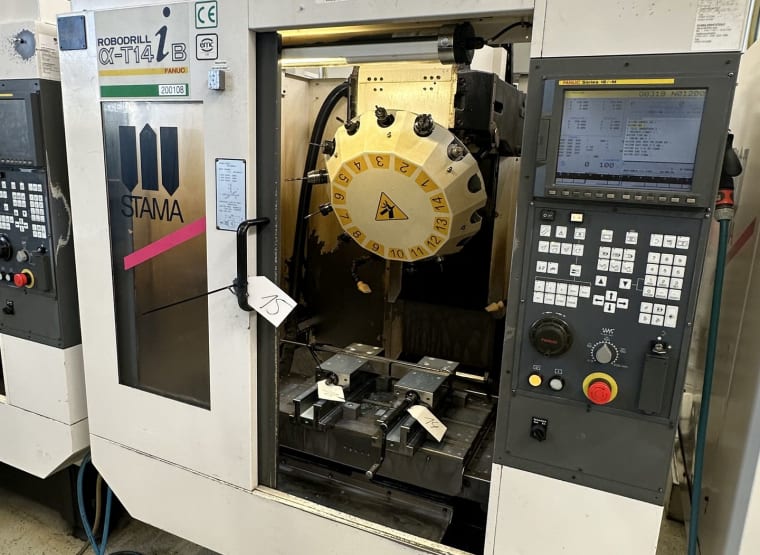

STAMA/FANUC MC 014/ ROBODRILL α- T14 iB CNC Vertical Machining Centre

STAMA/FANUC MC 014/ ROBODRILL α- T14 iB CNC Vertical Machining Centre
lot no. 206
Closing time: 01/02/24 13:24
3,000 € Current highest bid
6 Bids 120 watchers
Log in to bid
Use bidding agent
+ auction fee & VAT
STAMA/FANUC MC 014/ ROBODRILL α- T14 iB CNC Vertical Machining Centre
01/02/24 13:24
Closing time
3,000 €
Current highest bid
Name
STAMA/FANUC MC 014/ ROBODRILL α- T14 iB CNC Vertical Machining Centre
Item number
867784
Manufacturer
STAMA/FANUC
Model / Type
MC 014/ ROBODRILL α- T14 iB
Year of manufacture
2001
Item available from
immediately
Item condition
Location
Germany, 73529 Schwäbisch Gmünd
Buyer’s premium
18 %
Total Price
plus VAT
Dismantling & loading costs (optional)
250.00 €
Shipping costs
not included
Delivery terms
EXW Schwäbisch Gmünd, ex foundation, unpackaged
Payment terms
100% payment prior to collection
z-motion
330 mm
max. workpiece weight between centers
250 kg
x-motion
500 mm
y-motion
400 mm
control
FANUC SERIES 60 i-M
table surface area l x w
650 x 400 mm
taper
SK 30
toolchanger positions
14
spindle torque
35 Nm
turning speed range
80 - 8000 rpm
feed range
15,000 mm/min
rapid motion
48 m/min
weight approx.
2,100 kg
Approx. Onsite Dimension. (l x w x h)
2,100 x 1,450 x 2,000 mm
  • serial no.: P014TL095
  • operating voltage: 400 V
  • frequency: 50 Hz
  • nominal current: 17 A
  • jib length: 380 mm
  • distance between table and spindle nose: min. 150 mm
  • distance between table and spindle nose: max. 480 mm
  • with 3 slots
  • slot width: 14H14 mm
  • Table height over floor: 815 mm
  • working spindle:
  • spindle bearing: 50 mm diameter
  • tool clamping: 2200 N
  • Max. tool diameter: 80 mm
  • Max. tool length: 250 mm
  • Max. feed force:
  • X: 2700 N
  • Y: 2700 N
  • Z: 5400 N
  • chiping values:
  • Max. milling performance: 600 cm³
  • Max. drill diameter: 20 mm
  • Max. thread diameter: M 16
  • attention: without machine vices on clamping surface and without SK 30 tool holders on tool turret
Automatic translation
Auction name
Machines and Inventory for Plastics & Metal Processing
lot no.
206
Documents
Spec. Auction Terms
Inspection
The exact location is available on request.
73235 Weilheim Teck / 73529 Schwäbisch Gmünd, Germany

- address on request -
Viewing by prior appointment only!
Pick up
Monday, 12/02/2024 to
Friday, 16/02/2024, from 08:00 to 16:00

Monday, 19/02/2024 to
Wednesday, 21/02/2024, from 08:00 to 16:00
