Auction Bankruptcy Auction of Precision Parts Manufacturer P.C.S. Precision Works Germany GmbH Part 2

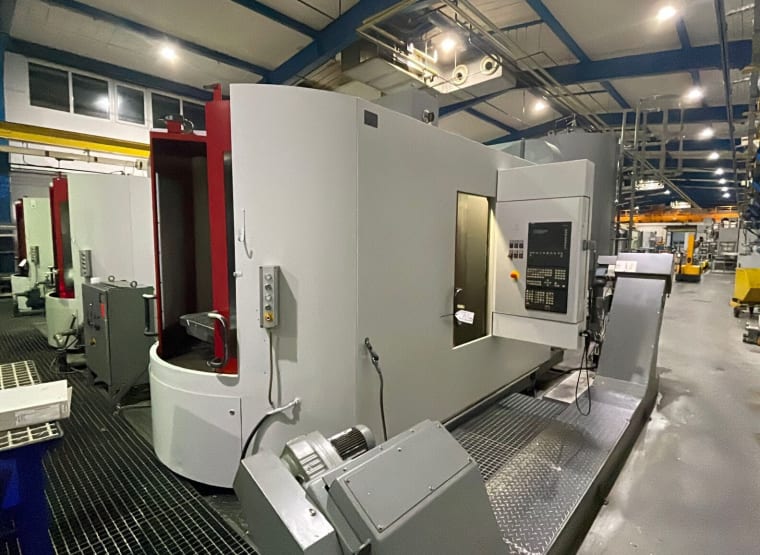

STARRAGHECKERT CWK 500 D Horizontal Machining Center
lot no. 70
14,400 €
4 Bids 15 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
30/01/24 14:04
Closing time
14,400 €
Current highest bid
Item details
- Name
- STARRAGHECKERT CWK 500 D Horizontal Machining Center
- Item number
- 867580
- Manufacturer
- STARRAGHECKERT
- Model / Type
- CWK 500 D
- Year of manufacture
- 2003
- Item available from
- immediately
- Item condition
- Location
-
Germany, 02733 Cunewalde
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 1,800.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Cunewalde, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- z-motion
- 700 mm
- x-motion
- 750 mm
- y-motion
- 750 mm
- control
- Siemens Sinumerik 840 D
- numbers of pallets
- 2
- taper
- HSK-A 63
- toolchanger positions
- 60
- turning speed range
- 15,000 rpm
- rapid motion
- 40 m/min
- weight approx.
- 15,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 8,000 x 6,000 x 3,300 mm
- table surface area l x w
- 500 x 500 mm
Item description
minimum distance of the work spindle front edge to the center of the pallet 100 mm
minimum distance of the work spindle center to the top edge of the pallet 80 mm
maximum permissible height of workpieces and clamping device for changing into the working area 900 mm
maximum load per pallet 500 kg
interference circle diameter 800 mm
max. table revolutions 100 rpm
max. pallet change time 9 s
Working feed X Y Z 1 to 40000 mm/min
Diameter in the front bearing of the working spindle 75 mm
max. tool diameter with free adjacent places 160 mm, with occupied adjacent places 80 mm
max. tool mass 10 kg
Total weight of all tools in the storage 200 kg
Machine number 16075
Attention: a truck with a width of up to 3000 mm is required for transport. For an additional cost of 500 euros, the machine can be disassembled to fit on a standard truck
Automatic translation
Auction details
- Auction name
- Bankruptcy Auction of Precision Parts Manufacturer P.C.S. Precision Works Germany GmbH Part 2
- lot no.
- 70
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
02733 Cunewalde, Germany
- address on request -
Viewing by prior appointment only!
- Pick up
-
Monday, 12/02/2024 to
Friday, 16/02/2024, from 08:00 to 16:00
Monday, 19/02/2024 to
Friday, 23/02/2024, from 08:00 to 16:00
Monday, 26/02/2024 to
Thursday, 29/02/2024, from 08:00 to 16:00
Do you have any questions in relation to the item? Please contact us.
Thomas Reichelt Project Manager
