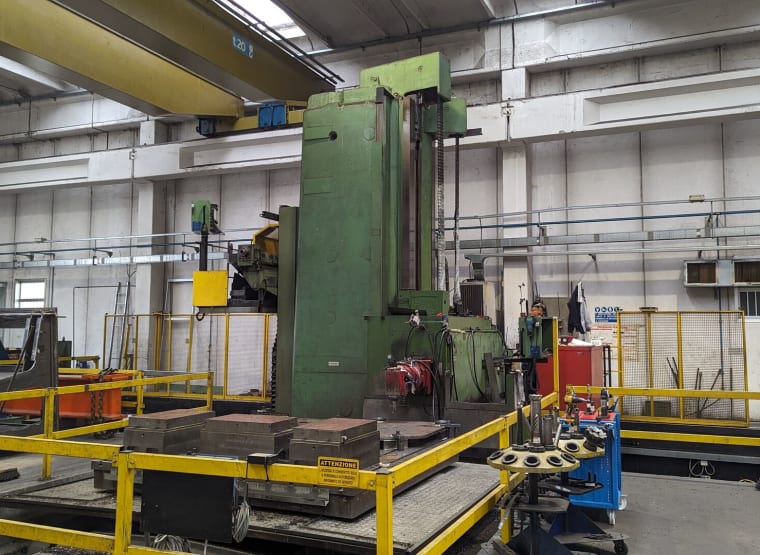

TECMU SHARMANN AFP 180 - TEC.MLF.10 Floor Type Boring Mill

TECMU SHARMANN AFP 180 - TEC.MLF.10 Floor Type Boring Mill
Name
TECMU SHARMANN AFP 180 - TEC.MLF.10 Floor Type Boring Mill
Item number
863671
Manufacturer
TECMU
Model / Type
SHARMANN AFP 180 - TEC.MLF.10
Documents
443.pdf
Videos
Video 1
Year of manufacture
2002
Item available from
immediately
Item condition
Location
Italy, region Brescia
Dismantling & loading costs (optional)
25,000.00 €
Shipping costs
not included
Delivery terms
EXW, ex foundation, unpackaged
Payment terms
100% payment prior to collection
z-motion
1,200 mm
table surface area l x w
2700 x 2700 mm
control
SELCA 4045PD
power capacity - spindle
50 kW
weight approx.
160,000 kg
Approx. Onsite Dimension. (l x w x h)
19,000 x 10,000 x 6,000 mm
  • Longitudinal travel of upright X 10,000 mm
  • Spindle head vertical travel Y 3,300 mm
  • RAM transverse travel Z 1,100 mm
  • Spindle quill travel W (boring bar) 800 mm
  • Translating travel C 2,000 mm
  • Turntable plate positions B 360,000 n
  • Turntable size 2,700 x 2,700 mm
  • Drilling unit vertical travel V 2,700 mm
  • Drilling unit transversal travel U 500 mm
  • SELCA S4045PD control
  • Serial number 02-021.021
  • Dig depth 2000 mm
