TECNOLIQUID OI 40M + OI 80 M Whey concentration unit

TECNOLIQUID OI 40M + OI 80 M Whey concentration unit
Name
TECNOLIQUID OI 40M + OI 80 M Whey concentration unit
Item number
859684
Manufacturer
TECNOLIQUID
Model / Type
OI 40M + OI 80 M
Documents
Concentratore_in_OI_40M.pdf Concentratore_in_OI_80M.pdf Dich.concentratore_TCL0117_TECNOLIQUID.pdf SchemaFlusso_60M.pdf
Year of manufacture
2017-2014
Item available from
immediately
Item condition
Location
Italy, region Padova
Shipping costs
not included
Delivery terms
EXW, ex foundation, unpackaged
Payment terms
100% payment prior to collection
Approx. Onsite Dimension. (l x w x h)
11,000 x 3,100 x 3,100 mm
weight approx.
5,000 kg
Lot consisting of 2 "Concentration plants":

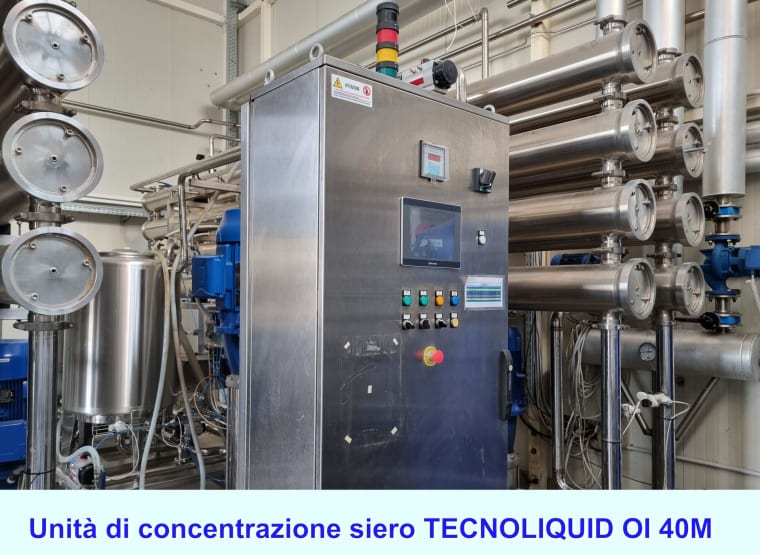

OI 40M concentrator - year 2017
Typical operating conditions:
  • Quantity of water extracted: approximately 20,000 l/h
  • Processing cycle: 10-18 h
  • Concentration ratio: about 5 times
  • Quantity of water processed per cycle: approximately 25,000 l/h
  • Typical operating pressure OI: 25-35 bar
  • Maximum temperature: 50° C
  • The system is substantially composed of:
    • AISI 316 L stainless steel washing tank of approximately 5 quintals
    • Stainless steel preload centrifugal pump complete with three-phase motor 400 V, 50 Hz, power 4.5 kW
    • 1 stainless steel bag safety filter
    • 1 pressurization pump (multi-rotor centrifugal) in stainless steel complete with three-phase motor 400 V, 50 Hz, power 22 kW, regulation with inverter
    • 2 stainless steel recirculation pumps complete with 400V three-phase motor, 50 Hz, 15 kW power, inverter regulation.
    • hydraulic interconnections and valves in stainless steel
    • support structure made of AISI 316 stainless steel
  • System equipped with:
    • flow meters (local flow meters) for permeate and concentrate
    • loop input and output pressure switches
    • temperature probe
    • pH meter inserted in wash tank
  • Dimensions 6000 x 2450 x 3100 mm
OI 80M concentrator - year 2014
Typical operating conditions:
  • Quantity of water extracted: approximately 13,500 l/h
  • Processing cycle: 10 h
  • Concentration ratio: about 3 times
  • Quantity of water processed per cycle: approximately 30,000 l/h
  • Typical operating pressure OI: 25-35 bar
  • Maximum temperature: 50° C
  • The system is substantially composed of:
    • AISI 316 L stainless steel washing tank
    • centrifugal stainless steel preload pump complete with three-phase motor 400 V, 50 Hz, power 6.5 kW
    • 2 stainless steel safety bag filters
    • 2 pressurization pumps (multi-impeller centrifugal) in stainless steel complete with three-phase motor 400 V, 50 Hz, power 36 kW, regulation with inverter
    • 2 stainless steel recirculation pumps complete with 400V three-phase motor, 50 Hz, 15 kW power, inverter regulation.
    • hydraulic interconnections and valves in stainless steel
    • support structure made of AISI 316 stainless steel
  • System equipped with:
    • flow meters (local flow meters) for permeate and concentrate
    • membrane inlet and outlet pressure gauges
    • thermometer
  • Dimensions 5000 x 3200 x 3100 mm (it is necessary to disassemble and desolder the rear part of the system to load it to standard transport dimensions)
