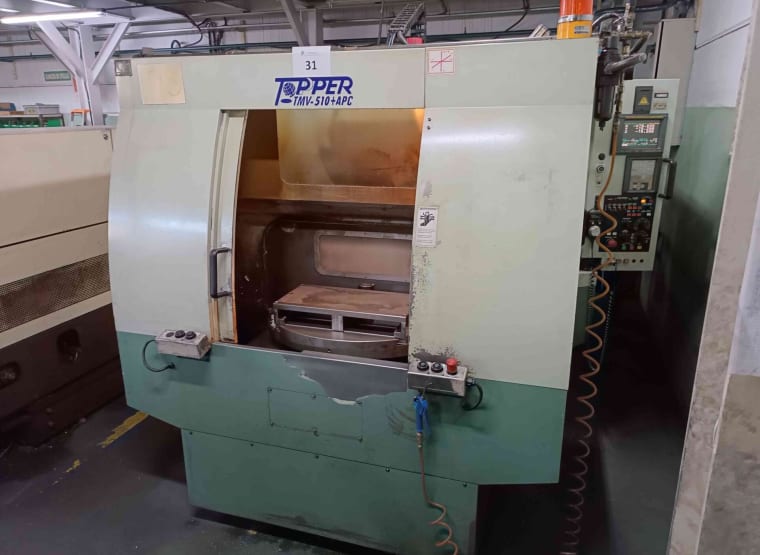

TONGTAI TOPPER TMV-510+APC Vertical Machining Centre
Top lot
lot no. 31
2,600 €
7 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
06/02/24 10:30
Closing time
2,600 €
Starting bid
Item details
- Name
- TONGTAI TOPPER TMV-510+APC Vertical Machining Centre
- Item number
- 885275
- Manufacturer
- TONGTAI TOPPER
- Model / Type
- TMV-510+APC
- Documents
- LNR.031.CARACTERISTICAS TECNICAS CENTRO TOPPER TMV-510+APC.pdf
- Year of manufacture
- 2003
- Item available from
- Inmediately
- Item condition
- Location
-
Spain, 48220 Abadiño
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 650.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Abadiño, loaded on truck
- Payment terms
- 100% payment prior to collection
- Security deposit
Technical details
- z-motion
- 300 mm
- x-motion
- 510 mm
- y-motion
- 360 mm
- numbers of pallets
- 2
- weight approx.
- 4,300 kg
- Approx. Onsite Dimension. (l x w x h)
- 2,050 x 3,700 x 2,430 mm
Item description
Double pallet vertical machining center
Serial number 12377
Worktable surface 600 x 360 mm
Maximum weight on each table 100 kg
Travels: X-axis: 510 mm, Y-axis: 360 mm, Z-axis: 300 mm
Spindle taper MAS BT30
Speed range 120 - 12.000 Rpm
Rapid feeds: (X - Y) 40,000 mm/min, (Z) 48,000 mm/min
10 tool magazine
FANUC Oi-M Series Control
Operation hours according to counter: 33,020 h
Working hours according to counter: 18,026 h
Portable electronic handwheel
Power 15 kVA
Chip extractor included
Includes tool-holder cones with mounted tools, shown in photos.
Serial number 12377
Worktable surface 600 x 360 mm
Maximum weight on each table 100 kg
Travels: X-axis: 510 mm, Y-axis: 360 mm, Z-axis: 300 mm
Spindle taper MAS BT30
Speed range 120 - 12.000 Rpm
Rapid feeds: (X - Y) 40,000 mm/min, (Z) 48,000 mm/min
10 tool magazine
FANUC Oi-M Series Control
Operation hours according to counter: 33,020 h
Working hours according to counter: 18,026 h
Portable electronic handwheel
Power 15 kVA
Chip extractor included
Includes tool-holder cones with mounted tools, shown in photos.
