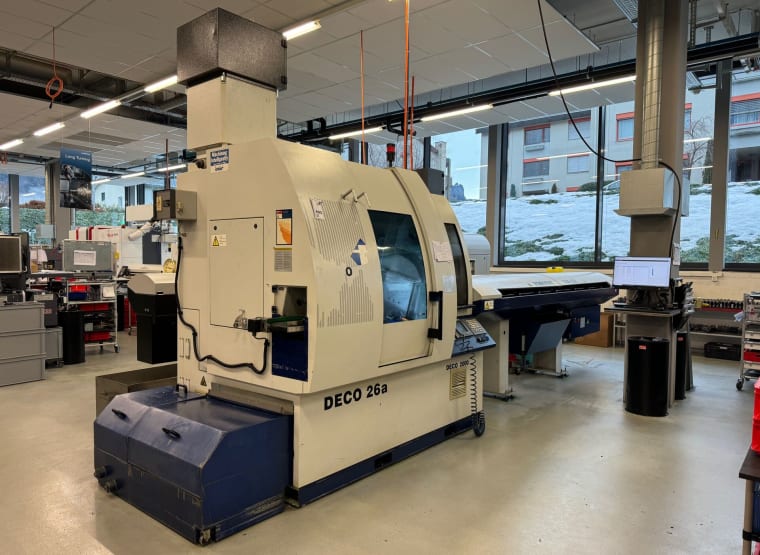

TORNOS Deco 26a Swiss type lathe

Moving headstock S1:

• Maximum passage round bars 32 mm
• Minimum passage for round rods 6 mm
• Rotational range of the spindle S1 100-8000 rpm

Axis Z1 - stroke 260 mm
Axes X1 and Y1 - stroke 50 / 190 mm
Axes X2 and Y2 - stroke 50 / 190 mm
Diameter of ball screw - 20 mm

Drive S2 ( axes X2-Y2 )
Max. number of driven positions - 4
Max. Motor speed - 8000 rpm

Facing attachment with 4 spindles ( axes X3 / Z3 )
Max. Stroke of axes Z3 and X3 - 221 / 205 mm
Diameter of the ball screw - 20 mm

Tapping spindle S4
Max. Workpiece passage - 32 mm
Max. Workpiece length in rear side processing - 240 mm
Spindle speed of spindle S4 - 100-6000 rpm

Tapping spindle axes Z4, X4, Y4
Max. Adjustment travel of axes Z4, X4 and Y4 - 315/316/137 mm

With loading magazine ROBOBAR SBF-532 year 2005
with collets, tool holder and driven tool
Larger oil basin
Oil mist separator
with CE documentation
Spindle revision main spindle (2020)
Ball screw X3 (new 2022)

The dismantling costs are currently only estimated, we are still waiting for a detailed offer
