Item details
- Name

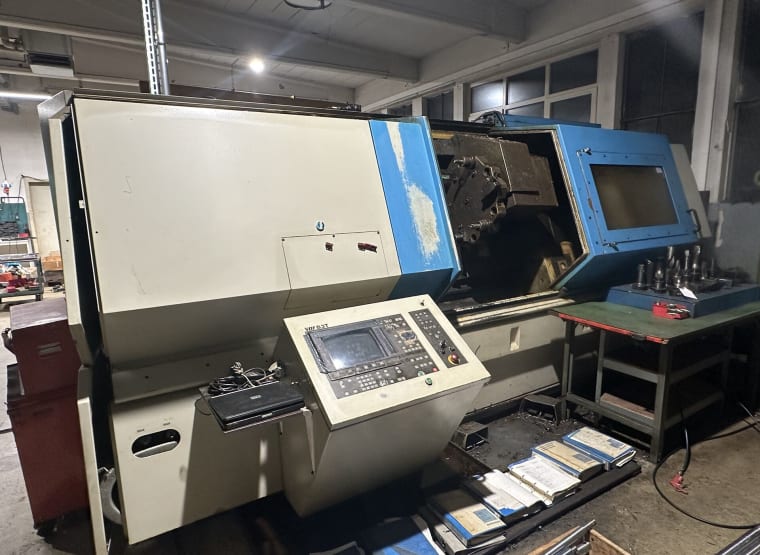

- VDF-BOEHRINGER VDF 250C-U CNC lathe
- Item number
- 883378
- Manufacturer
- VDF-BOEHRINGER
- Model / Type
- VDF 250C-U
- Year of manufacture
- 1988
- Item available from
- immediately
- Item condition
- Location
-
Germany, 90552 Röthenbach
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 500.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Röthenbach, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- weight approx.
- 10,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 7,000 x 2,900 x 2,200 mm
Item description
Serial number: 1114.3371-24
Operating voltage: 380 V
Frequency: 50 Hz
Rated current: 125 A
Control unit: PHILIPS BT 3
Max. Circulation diameter over bed: 400 mm
Max. Machining diameter lengthwise: 350 mm
Collision-free diameter at the drum turret: 280 mm
Turning length: 1000 mm
Support path Z-axis: 1176 mm
Support path X-axis: 370 mm
Main spindle:
Spindle head size: 8
Chuck diameter: 250/315 mm
Spindle bore: 78 mm
Spindle passage in the front bearing: 120 mm
Tailstock:
Tailstock quill diameter: 100 mm
Quill stroke: 100 mm
Quill axial force: 14 kN
Inner taper mount: SK 30
Feed speed: 0.1 - 10000 mm/min
Rapid feed: 10 m/min
Feed force: 15 kN
Standard tool turret:
Number of tool holders: 12
Of which cylindrical shank holders: 50
And turning tool direct holders: 25 x 25 mm
Repeat accuracy: 2 µ
Incl. driven tool stations
The machine is equipped with a tailstock and a three-jaw chuck
Diameter: approx. 320 mm
Incl. chip conveyor and documentation shown
Attention: only the tool in the turret is included in the scope of delivery. All other visible tools are not included in the scope of delivery
Operating voltage: 380 V
Frequency: 50 Hz
Rated current: 125 A
Control unit: PHILIPS BT 3
Max. Circulation diameter over bed: 400 mm
Max. Machining diameter lengthwise: 350 mm
Collision-free diameter at the drum turret: 280 mm
Turning length: 1000 mm
Support path Z-axis: 1176 mm
Support path X-axis: 370 mm
Main spindle:
Spindle head size: 8
Chuck diameter: 250/315 mm
Spindle bore: 78 mm
Spindle passage in the front bearing: 120 mm
Tailstock:
Tailstock quill diameter: 100 mm
Quill stroke: 100 mm
Quill axial force: 14 kN
Inner taper mount: SK 30
Feed speed: 0.1 - 10000 mm/min
Rapid feed: 10 m/min
Feed force: 15 kN
Standard tool turret:
Number of tool holders: 12
Of which cylindrical shank holders: 50
And turning tool direct holders: 25 x 25 mm
Repeat accuracy: 2 µ
Incl. driven tool stations
The machine is equipped with a tailstock and a three-jaw chuck
Diameter: approx. 320 mm
Incl. chip conveyor and documentation shown
Attention: only the tool in the turret is included in the scope of delivery. All other visible tools are not included in the scope of delivery
