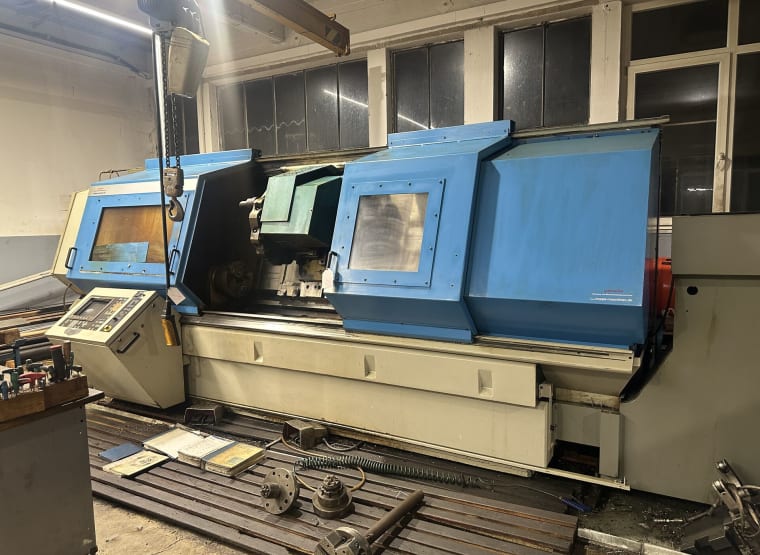

VDF-BOEHRINGER VDF 250C-U CNC lathe

Serial number: 1114.3423-24
Operating voltage: 380 V
Frequency: 50 Hz
Rated current: 125 A
Control unit: PHILIPS BT 3
Max. Circulation diameter over bed: 400 mm
Max. Machining diameter lengthwise: 350 mm
Collision-free diameter at the drum turret: 280 mm
Turning length: 2000 mm
Support path Z-axis: 2176 mm
Support path X-axis: 370 mm
Main spindle:
Spindle head size: 8
Chuck diameter: 250/315 mm
Spindle bore: 78 mm
Spindle passage in the front bearing: 120 mm
Tailstock:
Tailstock quill diameter: 100 mm
Quill stroke: 100 mm
Quill axial force: 14 kN
Inner taper mount: SK 30
Feed speed: 0.1 - 10000 mm/min
Rapid feed: 10 m/min
Feed force: 15 kN
Standard tool turret:
Number of tool holders: 12
Of which cylindrical shank holders: 50
And turning tool direct holders: 25 x 25 mm
Repeat accuracy: 2 µ
Incl. driven tool stations
The machine is equipped with a tailstock and a three-jaw chuck
Manufacturer: SMW Autoblok
Diameter: approx. 320 mm
As well as 2 steady rests and various clamping devices located in front of the machine as well as documentation
Incl. chip conveyor
Attention: the tools on the tool turret are included in the scope of delivery
