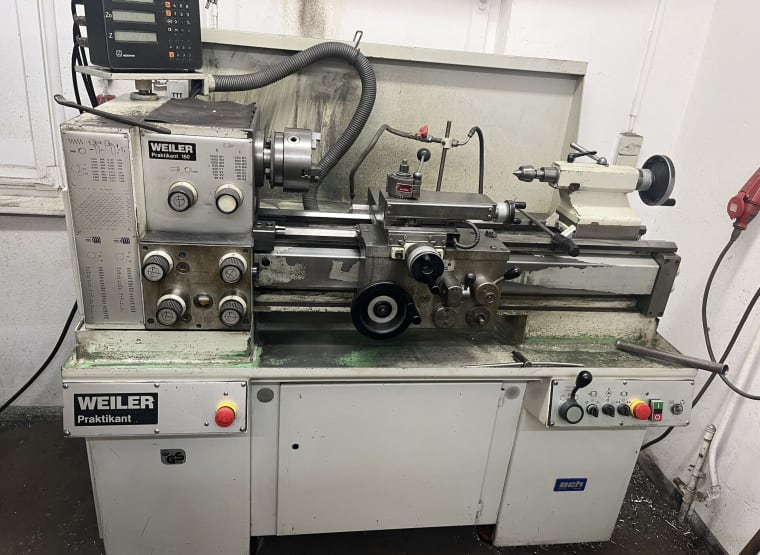

WEILER Praktikant 160 B Centre Lathe
lot no. 26
6,500 €
33 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
06/02/24 10:05
Closing time
6,500 €
Starting bid
Item details
- Name
- WEILER Praktikant 160 B Centre Lathe
- Item number
- 878816
- Manufacturer
- WEILER
- Model / Type
- Praktikant 160 B
- Year of manufacture
- 1990
- Item available from
- immediately
- Item condition
- Location
-
Germany, 86753 Möttingen
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 200.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Möttingen, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- weight approx.
- 900 kg
- Approx. Onsite Dimension. (l x w x h)
- 1,800 x 1,200 x 1,500 mm
Item description
Digital display: 3-axis digital display
Max. turning diameter over bed: approx. Ø 320 mm
Max. turning diameter over support: approx. Ø 198 mm
Max. turning length: approx. 650 mm
Rod passage: approx. Ø 40 mm
Spindle: Speed range: approx. 96 – 2500 rpm
Spindle nose: A 2 – 5
Drive power: approx. 2.2 kW
Automatic longitudinal & plan feeds: feed range: approx. 0.007 – 0.63 mm/rev
Suitable for threads:
– Metric 0.25 – 8 mm
– Inch 80 – 2 Gg/”
– Diametrically
– Pitch thread 200 – 5 Dp – Module 0.2
– 4 tailstock: MK 3
Accesories:
-3 – Jaws – Chuck 160mm
-4 jaw chuck 250mm
-Quick change tool holder + 4 inserts -Electric chuck protection
-Emergency stop switch
-Various tension wrenches
-L+Z spindle cover
- Lace holder
Max. turning diameter over bed: approx. Ø 320 mm
Max. turning diameter over support: approx. Ø 198 mm
Max. turning length: approx. 650 mm
Rod passage: approx. Ø 40 mm
Spindle: Speed range: approx. 96 – 2500 rpm
Spindle nose: A 2 – 5
Drive power: approx. 2.2 kW
Automatic longitudinal & plan feeds: feed range: approx. 0.007 – 0.63 mm/rev
Suitable for threads:
– Metric 0.25 – 8 mm
– Inch 80 – 2 Gg/”
– Diametrically
– Pitch thread 200 – 5 Dp – Module 0.2
– 4 tailstock: MK 3
Accesories:
-3 – Jaws – Chuck 160mm
-4 jaw chuck 250mm
-Quick change tool holder + 4 inserts -Electric chuck protection
-Emergency stop switch
-Various tension wrenches
-L+Z spindle cover
- Lace holder
