WEINIG & SCM Comb. Window Production System incl. Window Handle Drilling Machine
20/02/24 14:00
Closing time
9,800 €
Starting bid
Name
WEINIG & SCM Comb. Window Production System incl. Window Handle Drilling Machine
Item number
878401
Manufacturer
WEINIG
Model / Type
UC 6
Videos
Video 1 Video 2 Video 3 Video 4 Video 5 Video 6
Year of manufacture
2001
Item available from
immediately
Item condition
Location
Germany, 84307 Eggenfelden
Buyer’s premium
18 %
Dismantling & loading costs (binding)
800.00 €
Total Price
plus VAT
Shipping costs
not included
Delivery terms
FCA Eggenfelden, loaded on truck
Payment terms
100% payment prior to collection
Approx. Onsite Dimension. (l x w x h)
7,500 x 5,000 x 2,100 mm
weight approx.
6,200 kg
consisting of:

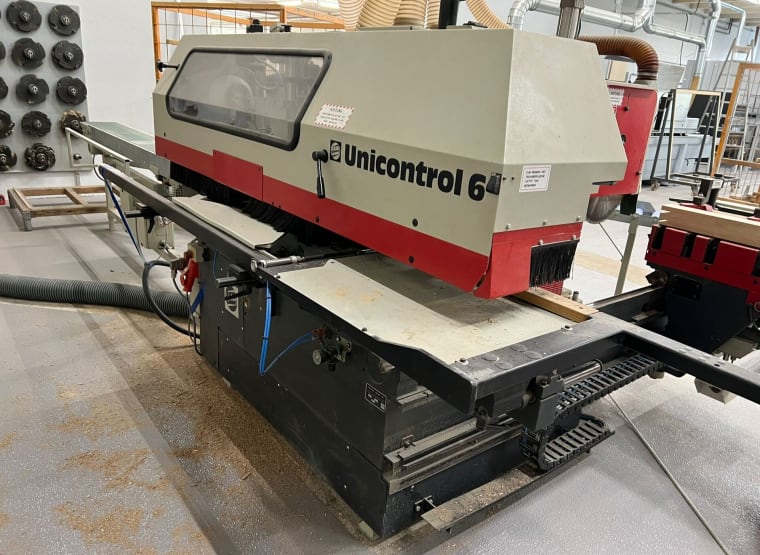

WEINIG UC 6 angle unit, incl. tool sets (year of manufacture 2001)

Technical data:
  • Dimensions (L x W x H): 7500 mm x 2600 mm x 2100 mm
  • Weight: 4200 kg
Areas of application:
  • Production of wooden and wooden-aluminum windows in profiles IV 68, IV 78 and IV 90.
Machining options:
  • End profiles can be slotted and tenoned.
  • Longitudinal profiles can be processed in the inner and outer rebate.
Special functions:
  • External sash rebate processing/rebating including synchronized spindles for tear-free routing.
  • 2. Spindle for separating glazing beads is included.
  • 4. Spindle for routing fittings and gear groove is included.
  • Automatically swiveling outfeed for return transport to the operator.
Processing in manual and automatic mode is possible.

Tools available:
  • Slot and tenon end profiles for timber/timber sash windows in IV 78 and IV 90 with conversion kit
  • Longitudinal profiles for frames and sashes Internal rebate processing

SCM FORMAT automatic rebating machine incl. automatic window handle drilling machine (built 1998)

Technical data:
  • Dimensions (L x W x H): 4600 mm x 1300 mm x 1600 mm
  • Weight: 1980 kg
Areas of application:
  • Suitable for rebating sashes of timber and timber-aluminum windows in profiles IV 68, IV 78 and IV 90.
Special functions:
  • Includes spindles for processing hardware grooves.
  • Synchronized spindle for tear-free milling is integrated.
  • Lifting spindles for various tool sets are available.
Available tools:
  • Tools for rebating timber/timber aluminium windows in profiles IV 78 and IV 90
Automatic handle drilling machine (self-made)

Technical data:
  • Dimensions (L x W x H): 2650 mm x 700 mm x 1800 mm
  • Weight: 80 kg
Areas of application:
  • Designed for the precise drilling of holes for the installation of chamber gearboxes with a mandrel of 35 mm and handle foils with a fixing distance of 43 mm.
Drive:
  • The machine is driven both electrically and pneumatically.
Tools provided:
  • Includes drill and stops as shown in the attached photo.
Automatic translation
Auction name
Wide Choice, Favourable Prices: Stock Clearance Woodworking
lot no.
1
Documents
Spec. Auction Terms
Inspection
The exact location is available on request.
The items are in different locations (see item description). Viewing by appointment only!
