Top lot
lot no. 1
990 €
1 Bid 15 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
27/02/24 10:00
Closing time
990 €
Current highest bid
Item details
- Name

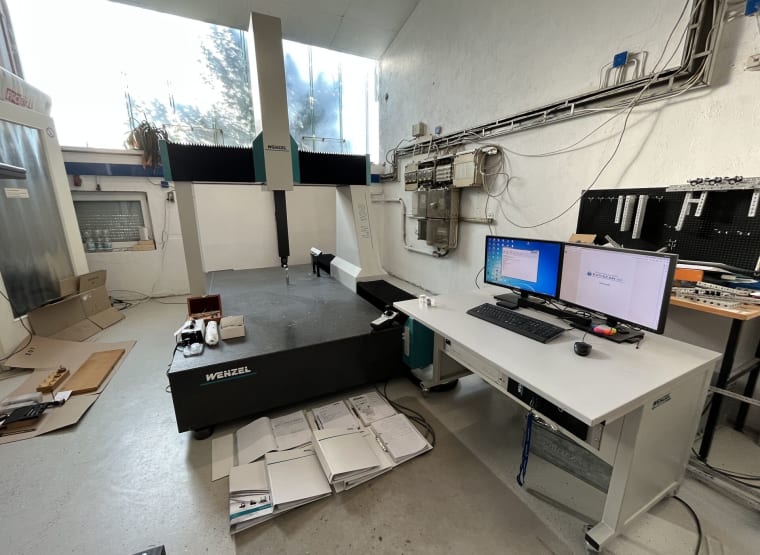

- WENZEL LH 108 Coordinate measuring machine
- Item number
- 888245
- Manufacturer
- WENZEL
- Model / Type
- LH 108
- Videos
-
Video 1 - Year of manufacture
- unknown
- Item available from
- immediately
- Item condition
- Location
-
Germany, 76703 Landshausen
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 1,000.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Landshausen, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- weight approx.
- 6,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 3,500 x 2,000 x 2,800 mm
Item description
Measuring Machine System LH:
Operating voltage: 115/230 V
Frequency: 50/60 Hz
Power consumption: max. 1500 W
Compressed air connection: min. 6 bar
Air consumption: approx. 120 Nl/min
Measurement range X-axis: 1000 mm
Measurement range Z-axis: 800 mm
Resolution: 0.0005 mm
Repeatability: 0.0025 mm
Table dimensions: 2650 x 1460 mm
Travel distances:
X: 1000 mm
Y: 1600 mm
Z: 800 mm
Permissible workpiece weight: approx. 2000 kg
Including measuring instruments stored on the table
Software: Quartis 2018/1
Possible activities: Surface scan, curve measurement, surface form measurement
Including probe change
Operating voltage: 115/230 V
Frequency: 50/60 Hz
Power consumption: max. 1500 W
Compressed air connection: min. 6 bar
Air consumption: approx. 120 Nl/min
Measurement range X-axis: 1000 mm
Measurement range Z-axis: 800 mm
Resolution: 0.0005 mm
Repeatability: 0.0025 mm
Table dimensions: 2650 x 1460 mm
Travel distances:
X: 1000 mm
Y: 1600 mm
Z: 800 mm
Permissible workpiece weight: approx. 2000 kg
Including measuring instruments stored on the table
Software: Quartis 2018/1
Possible activities: Surface scan, curve measurement, surface form measurement
Including probe change
Automatic translation
Auction details
- Auction name
- Measuring Machines, Measuring Equipment and more
- lot no.
- 1
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
76703 Landshausen/Kraichtal, Germany
- address on request -
Viewing by prior appointment only!
- Pick up
-
Tuesday, 12/03/2024 to
Friday, 15/03/2024, from 08:00 to 16:00
Do you have any questions in relation to the item? Please contact us.
