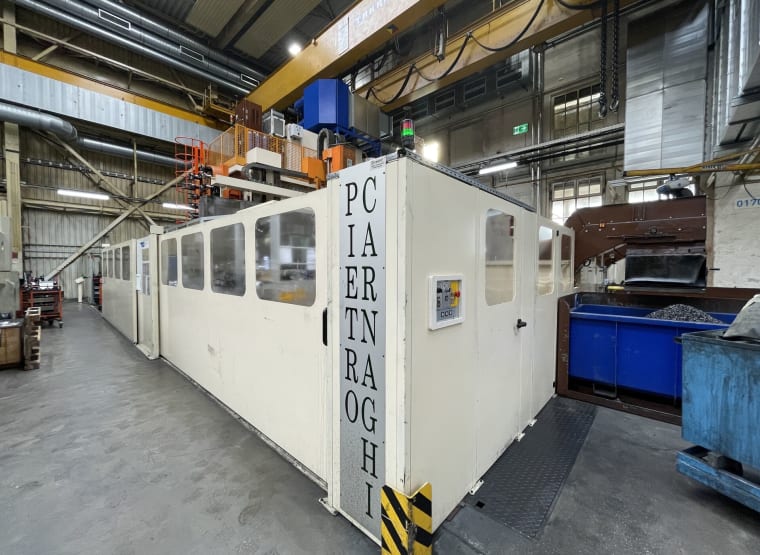

PIETRO CARNAGHI Gantry Unimill 35CA CNC Portal Milling Machine
Item details
- Name
- PIETRO CARNAGHI Gantry Unimill 35CA CNC Portal Milling Machine
- Item number
- 776211
- Manufacturer
- PIETRO CARNAGHI
- Model / Type
- Gantry Unimill 35CA
- Documents
- Doku.pdf Layout_small.pdf
- Videos
-
Video 1 - Year of manufacture
- 2004
- Item available from
- immediately
- Item condition
- good, under power
- Location
-
Germany, 80997 München
- Show on map
- All items at this location
- Virtual 3D Tour: View this item on site
Costs and benefits
- 35,000.00 €
- Shipping costs
- not included
- Delivery terms
- FCA München, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- z-motion
- 1,500 mm
- Distance spindle - table max.
- 2,500 mm
- x-motion
- 10,000 mm
- y-motion
- 4,500 mm
- control
- Siemens Sinumerik 840D
- table surface area l x w
- 10000 x 3000 mm
- no. of milling heads horizontal
- 1
- no. of milling heads vertical
- 2
- distance between columns
- 3,500 mm
- tool taper
- HSK 100 A
- turning speed range
- 0 - 4000 rpm
- feed range
- 10,000 mm/min
- rapid motion
- 10,000 m/min
- weight approx.
- 130,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 20,000 x 12,000 x 7,000 mm
Item description
PIETRO CARNAGHI Gantry Unimill 35CA
CNC portal milling machine from 2004 series no. 4623
Working range
Main drive
CNC portal milling machine from 2004 series no. 4623
Working range
- X-axis: 10.000 mm
- Y-axis: 4.500 mm
- Z-axis: 1.500 mm
- W-axis (grid 200mm) 1.000mm
- passage between columns 3.500 mm
- spindle distance over table:
- min. 0 mm
- max. 2.500 mm
- Siemens Sinumerik 840D
- pallet size 10.000 x 3.000 mm
- max. Load 10 to/m²
- Working areas (partition) 2
- Tool magazine 120 places
- Tool holder HSK100 A
- Short standard head
- Extended straight head (approx. Ø 195 mm)
- Angled head
Main drive
- Drive power 52 kW
- Speed range 1 - 4.000 min-1
- Internal coolant supply 50 bar
- Workpiece measurement Renishaw
- Tool identification Balluff
