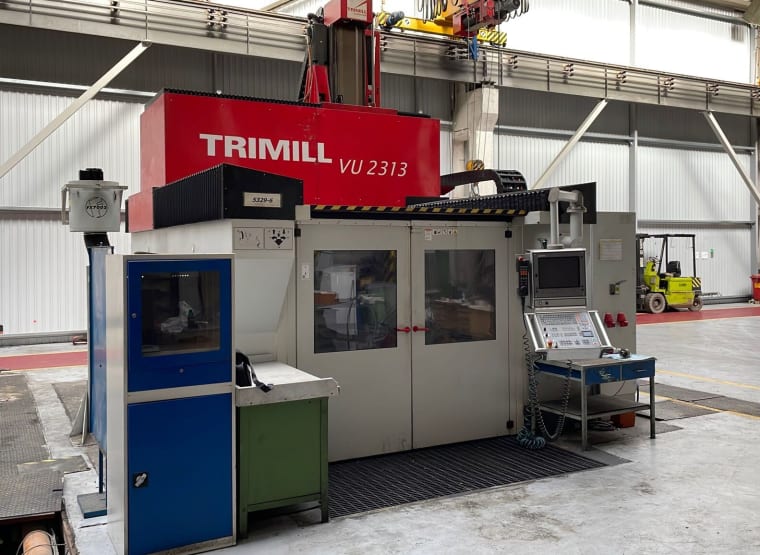

TRIMILL VU 2313 Portal Milling Machine
Item details
- Name
- TRIMILL VU 2313 Portal Milling Machine
- Item number
- 776637
- Manufacturer
- TRIMILL
- Model / Type
- VU 2313
- Documents
- Technical documents.pdf
- Year of manufacture
- 2010
- Item available from
- immediately
- Item condition
- Location
-
Czech Republic, 79201 Bruntal
- Show on map
- All items at this location
Costs and benefits
- 9,500.00 €
- Shipping costs
- not included
- Delivery terms
- FCA Bruntal, loaded on truck
- Payment terms
- 100% payment prior to collection
- tax / deposit
Technical details
- z-motion
- 1,000 mm
- x-motion
- 2,300 mm
- y-motion
- 1,300 mm
- control
- HEIDENHAIN iTNC 530
- table surface area l x w
- 1800 x 1800 mm
- tool taper
- HSK-A100
- turning speed range
- 10 - 10000 rpm
- feed range
- 20 mm/min
- total power requirement
- 59 kW
- weight approx.
- 36,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 7,200 x 5,300 x 5,000 mm
Item description
- serial number: 2312
- control: HEIDENHAIN iTNC 530
- working hours: approx. 68649 h
- spindle hours: approx. 40638 h
- number of axes: 5
- travels:
- X-axis: 2300 mm
- Y-axis: 1300 mm
- Z-axis: 1000 mm
- C-axis: 150° (+60/-90)
- B-axis: 370° (+/-185)
- table dimensions: 1800 x 1800 mm
- max. table load: 18000 kg
- feed rate: 20 mm/min.
- spindle power: 25 kW
- spindle speed range: 10 - 10000 rpm
- toolchanger positions: 10
- toolholder: HSK-A100
- max. tool diameter: 110 mm
- max. tool length: 450 mm
- max. tool weight: 12 kg
- coolant through spindle
- lubrication unit
- chip conveyor
- swivable head
- tables and cabinet in front of/next to the machine are not included in the scope of delivery
- please also take a look at the PDF document of this machine
