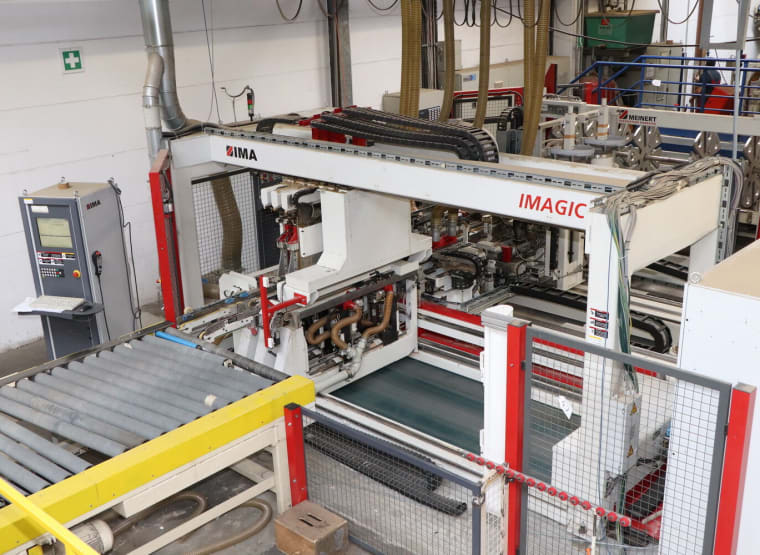

IMA IMAGIC Fix/Flex/D 60/250 Through-feed Drilling Machine with Dowel Insertion Station and Star Turner
Item details
- Name
- IMA IMAGIC Fix/Flex/D 60/250 Through-feed Drilling Machine with Dowel Insertion Station and Star Turner
- Item number
- 764547
- Manufacturer
- IMA
- Model / Type
- IMAGIC
- Year of manufacture
- 2011
- Item available from
- immediately
- Item condition
- in working order
- Location
-
Germany, 33334 Gütersloh
- Show on map
- All items at this location
Costs and benefits
- Shipping costs
- not included
- Delivery terms
- EXW Gütersloh, ex foundation, unpackaged
- Payment terms
- 100% payment prior to collection
Technical details
- working lenght min.
- 250 mm
- working lenght max.
- 2,500 mm
- working width min.
- 120 mm
- working width max.
- 671 mm
- dowel injection unit
- ja / yes
- chip conveyor
- ja / yes
- material clamping
- ja / yes
- Approx. Onsite Dimension. (l x w x h)
- 26,000 x 3,000 x 3,000 mm
- weight approx.
- 15,000 kg
Item description
Well-kept and powerful IMA IMAGIC Fix/Flex/D 60/250 through-feed drilling machine with dowel insertion station and star turner!
The IMA IMAGIC through-feed drilling machine is sold ex foundation / location!
IMA IMAGIC through-feed drilling machine with dowel insertion station
y.o.m. 2011, machine no. 25024/25/26
IMA star turner
y.o.m. 2010, machine no. 1583_01
The IMA IMAGIC is equipped as follows:
- Drilling system IMAGIC Fix 60/250 for processing plate-shaped workpieces
Automatic positioning of all axes
Drilling-/ travel path optimization IMA QUICK-STEP Basic
Working length (X) 250 - 2500 mm
working depth (Y) 120 - 671 mm
- Workpiece transport into
- Vertical drilling support from below with 2 vertical drilling units
Drilling unit IMAGIC Fix for base foot fitting
- Vertical drill support from above with hold-down and 2 vertical drilling units
Drilling gear Flex 3/3 -60
- Cultivation unit in special design for post drilling (machining from above)
- Horizontal drilling station IMAGIC in special design on separate base frame
Drilling gear Flex 1/7 -60 and drilling gear Flex 1/9 -60 (right and left)
- Horizontal glue-/ dowel station IMAGIC on separate base frame
Glue and subsequent dowel insertion
The IMA IMAGIC through-feed drilling machine is sold ex foundation / location!
IMA IMAGIC through-feed drilling machine with dowel insertion station
y.o.m. 2011, machine no. 25024/25/26
IMA star turner
y.o.m. 2010, machine no. 1583_01
The IMA IMAGIC is equipped as follows:
- Drilling system IMAGIC Fix 60/250 for processing plate-shaped workpieces
Automatic positioning of all axes
Drilling-/ travel path optimization IMA QUICK-STEP Basic
Working length (X) 250 - 2500 mm
working depth (Y) 120 - 671 mm
- Workpiece transport into
- Vertical drilling support from below with 2 vertical drilling units
Drilling unit IMAGIC Fix for base foot fitting
- Vertical drill support from above with hold-down and 2 vertical drilling units
Drilling gear Flex 3/3 -60
- Cultivation unit in special design for post drilling (machining from above)
- Horizontal drilling station IMAGIC in special design on separate base frame
Drilling gear Flex 1/7 -60 and drilling gear Flex 1/9 -60 (right and left)
- Horizontal glue-/ dowel station IMAGIC on separate base frame
Glue and subsequent dowel insertion
