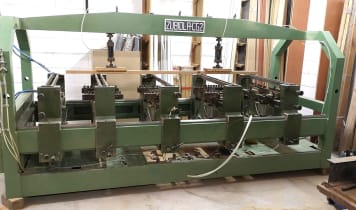

ZUBIOLA ACG2 Multi spindle
shape
Play
Spain, 08670 Navas

ZUBIOLA ACG2 Multi spindle

WEINIG & SCM Comb. Window Production System incl. Window Handle Drilling Machine
shape
Play
STEGHERR FD Dowel drilling machine
shape
Netherlands, 7468 DC Enter

STEGHERR FD Dowel drilling machine

SELECTA XC16F Mortiser
shape
Spain, 08670 Navas

SELECTA XC16F Mortiser

SCM FM 25 Dowel Drilling Machine
shape
MONBA Multiple Drill
shape
Spain, 08670 Navas

MONBA Multiple Drill

CIPSYMABILIECA Model drilling machine
shape
Romania, 725700 Vatra Dornei

CIPSYMABILIECA Model drilling machine

WEBO Line Boring Machine
shape
Germany, 72666 Neckartailfingen

WEBO Line Boring Machine

HETTICH BLUE MAX MINI HM Multiple Spindle Drilling Machine
shape
Play
LEGNA BI 96 Multiple Spindle Drilling Machine
shape
Play
Dovetailing Machine
shape
Play
Spain, 08670 Navas

Dovetailing Machine

INTERKRENN TV-13/se Drilling Machine
shape
Play
Dovetailing machine
shape
Spain, 08670 Navas

Dovetailing machine

WEEKE Optimat BHX 560 CNC-Through-Feed Drilling Machine
shape
Play
Poland, 64-308 Jabłonna k. Rakoniewice

WEEKE Optimat BHX 560 CNC-Through-Feed Drilling Machine

SCM MORBIDELLI POWERFLEX Through-feed Drilling Machine
shape
Play
Italy, 61022 Talacchio di Vallefoglia

SCM MORBIDELLI POWERFLEX Through-feed Drilling Machine

VITAP Automatic troughfeed boring machine
shape
Play
NICKMANN BM 21E Multiple spindle boring machine with pneumatic driving
shape

MORBIDELLI FM 400 DA automatic drilling machine
shape
Italy, 31040 Chiarano

MORBIDELLI FM 400 DA automatic drilling machine

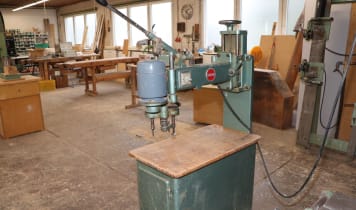

RAPID Knothole Drilling Machine
shape
Germany, 04895 Falkenberg

RAPID Knothole Drilling Machine

TOLEDO TBJ-710 Flat Dowel Milling Cutter
shape
Germany, 99444 Blankenhain

TOLEDO TBJ-710 Flat Dowel Milling Cutter

Manual Dovetailing Machine
shape
Spain, 08670 Navas

Manual Dovetailing Machine

ZENITH U-Chain Saw
shape
Italy, 21021 Angera (VA)

ZENITH U-Chain Saw

Series production in furniture manufacturing requires precise boreholes and accurately positioned dowel connections. This is why the woodworking industry and trade rely on high-quality drilling machines and dowel insertion machines. Depending on the requirements, special fittings drilling machines, through-feed drilling machines, dowel drilling machines and slot mortising machines are available. These woodworking machines are available in different performance classes. At the upper end of the spectrum are fully automatic CNC drilling lines with various drilling spindles, turning stations, and feeding and stacking systems. If you are looking for used machinery for drilling & dowelling or other used machines, Surplex will provide you with the high performance you require.



Drilling machines and dowelling machines are an indispensable part of the woodworking field. They are used to create bore holes using which separate parts of a piece of furniture can be joined together.

Drilling and the insertion of dowels and studs is a task best performed at the start of the woodworking process. Starting with the primitive tools of the Stone Age, humankind has now developed a wide range of efficient machines to aid in processing wood. The following machines are the most widely used in professional woodworking:

Knot hole drilling machines


Knot holes are a big challenge to furniture builders. The remnant of the branch that can still be found in the processed trunk is not as well fused as the rest of the wood and will sooner or later fall out. This leaves behind unsightly holes and reduces the stability of the wooden component.

The knot hole drilling machine was thus developed to ensure wooden beams and boards featuring knot holes can be transformed into valuable components without the aesthetic or stability issues normally associated with material. Their sawing process works according to the same principle as column/pillar drills by cutting out a defined circular cross-section from the workpiece. Pre-made pegs or dowels matching the radius can then be pressed into the corresponding holes and glued into place. The surface of the workpiece is then securely joined together and stability is restored.

Popular manufacturers of knot hole drilling machines include BAEUERLE, RAIMANN and RUESCH.

Hinge/fitting boring machines


Fittings include all types of metallic components that are screwed onto a piece of wood. These can be hinges, handles, adornments and other mechanical components, which are usually attached using short wood screws. The hinge boring machine can follow bore hole patterns and insert the right parts into the workpiece wherever they are needed. The individual drilling heads can be adjusted independently and reliably, and the machine can process any number of workpieces in a series to a consistently high quality.

Popular manufacturers of hinge boring machines include WUERTH, BLUM and BREMA.

Dowel insertion and dowel hole drilling machines


Automatic dowel insertion machines use mechanical, pneumatic or hydraulic pressure to insert pre-made pegs and dowels into workpieces. All they require is a set of pre-drilled holes, which is performed by dowel hole drilling machines. The machines drill defined blind holes into chipboard, slats, beams or solid wood materials. A key feature of efficient dowel hole drilling machines is very reliable extraction. This prevents the chips flying around the machine from falling back into the blind hole and thus making the job of the dowel inserting machine harder.

Popular manufacturers of dowel hole drilling machines and dowel inserters include GÖTZINGER, KOCH and VIETAP.

Throughfeed drilling machines


For jobs that require the same hole pattern over large series, throughfeed drilling machines are the ideal choice. These consist of a line of synchronised bench drilling machines that are fitted with an automatic feeding mechanism. The feed- and drilling processes are precisely aligned with each other to ensure an efficient, seamless process. Throughfeed drilling machines are some of the most important pieces of machinery in industrial furniture production.

Popular manufacturers of throughfeed drilling machines include WEEKE, BIESSE and MAW.

Slot mortisers


Slot mortisers mark the transition between drills and milling machines. If there is no drill available to make a slotted hole with a specific cross-section, the slot mortiser is the machine to choose.

These machines are not only cheaper than wood mills; they are also much more durable and thus more suited to processing large series. As with dowel hole drilling machines, slot mortisers must also be equipped with reliable, powerful extraction.

Popular manufacturers of slot mortisers include MCN, HOLZKRAFT and SAC.

Hole series drilling machines


Hole series drilling machines are used whenever series of holes with consistent quality need to be bored into wooden materials at high speed and efficiently. Even throughfeed drilling machines are not quick enough for the task of creating hole patterns. A hole series drilling machines can simultaneously bore 20 holes into a wooden panel in just one cycle. These are highly specialised machines but are real revenue-bringers when used properly in the right location.

Well-known manufacturers of hole series drilling machines include GANNOMAT, SCHEER and FELDER.

Cup hinge drilling machines


The cup hinge is standard fitting for cupboard doors and is widely used in the industrial-scale production of furniture. Hinges are torsionally stiff and complex units and thus require special bore holes in order to be put to use effectively. Cup hinge holes feature a wide diameter but only penetrate around halfway into the base material.

Door hinges are also attached using two wood screws to ensure they are secure and do not turn. This complex process requires its own type of machine, especially where performed on a serial scale, which is why the cup hinge drilling machine was developed. They are highly specialist machines and are indispensable to the furniture trade.

Popular manufacturers of up hinge drilling machines include WEGOMA and HESS.

Drilling is a linear process performed by a machining tool along a single axis and this is precisely the principle followed when designing boring machines for the wood processing field. They feature outstanding durability along their path of action due, in part, to the resilience of wood as a material. However, the tolerances required are nowhere near as high as for the metalworking field, whose machines are almost indestructible.

Wear parts

The base frame and guidance mechanisms experience only very negligible wear. The bearings, however, will gradually degrade due to the continually up and down movements, but they are fortunately easy to replace.

A woodworking drilling machine also consists of a strong electric motor. This is also very prone to wear and tear, as is the winding mechanism, which will not last indefinitely. It is often the case that the carbon brushes will have become worn down and the capacitors will have blown before the motor itself is completely unusable. Fortunately, both are wear parts, which means replacements will be easy to source.

Inspecting the machine

It is always wise to perform a test run on the machine you are considering buying. If you can smell something burning, this may be a sign of damage to the coil winding mechanism. Deciding whether maintenance is worth the effort and expense always depends on the machine in question. There are manufacturers who offer affordable coil winders as replacements, but if the rotor is burnt out, the machine will be a write-off.

Used woodworking drills are usually very easy to maintain and the only question that has to be clarified is whether the second-hand machine in question can achieve the desired performance. Some applications need to be able to achieve a certain level of productivity or a specific cycle rate and the machine must be capable of keeping up. The pressure to innovate amongst woodworking machinery manufacturers is very high. This particularly applies to production lines in 24-hour operation. As advancements are made, older systems are replaced, but if the design and condition are sufficient, even a second-hand machine can continue to serve a purpose.

Maintenance and repair

Drilling machines for woodworking are some of the most complex machinery available. Fortunately, the most prestigious manufacturers of these machines generally have good customer service and a wide supply of replacement parts for most machines. Apart from replacing wear parts, such as drill heads, chucks and other low-price components, woodworking drilling machines are easy to maintain and should not have any unpleasant surprises in store.
